>>Key features:

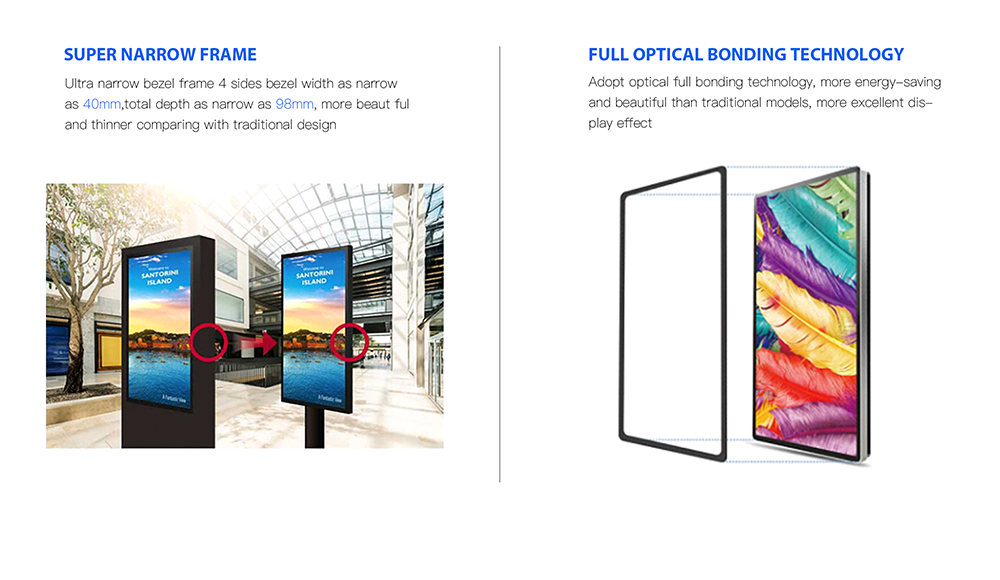

1.Fully fit screen technology, 38mm ultra-narrow frame,98mm ultra-thin thickness,Super large screen accounts for 96%.
2.Protection grade IP66, explosion protection grade IK10.
3.Industrial - grade high - brightness screen, high - temperature resistance.
4.Military superconducting uniform temperature technology, fast heat dissipation.
>>Specifications
|
Screen |
Sizes |
32” |
43” |
49” |
55” |
65” |
75” |
86” |
|
Backlight type |
LG /AUO/BOE |
|
Display dimension |
697*392 |
941*530 |
1074*604 |
1209*680 |
1428*803 |
1650*928 |
1895*1065 |
|
Brightness |
2000nits |
2500nits |
3000nits |
|
Resolution |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
3840*2160 |
3840*2160 |
|
Display scale |
16:09 |
|
Contrast |
1900/5/24 20:01 |
|
Backlight type |
6S |
|
Viewing angle |
178°(H)/178°(V) |
|
Light type |
Vertical LED |
|
Life span |
60000hours |
|
Control system |
Intelligent dimmer |
YES |
|
Intelligent temperature |
YES |
|
voltage |
Power input |
AC220/110V±10%，50/60 HZ |
|
Rated power |
130W |
180W |
260W |
300W |
400W |
600W |
800W |
|
Outer Shell |
Protection level |
IP66 |
|
Shell material |
Aluminium profile |
|
Shell life |
Eight years |
|
Glass types |
AR Antireflection glass |
|
Product size |
472*777*98 |
610*1021*98 |
684*1154*98 |

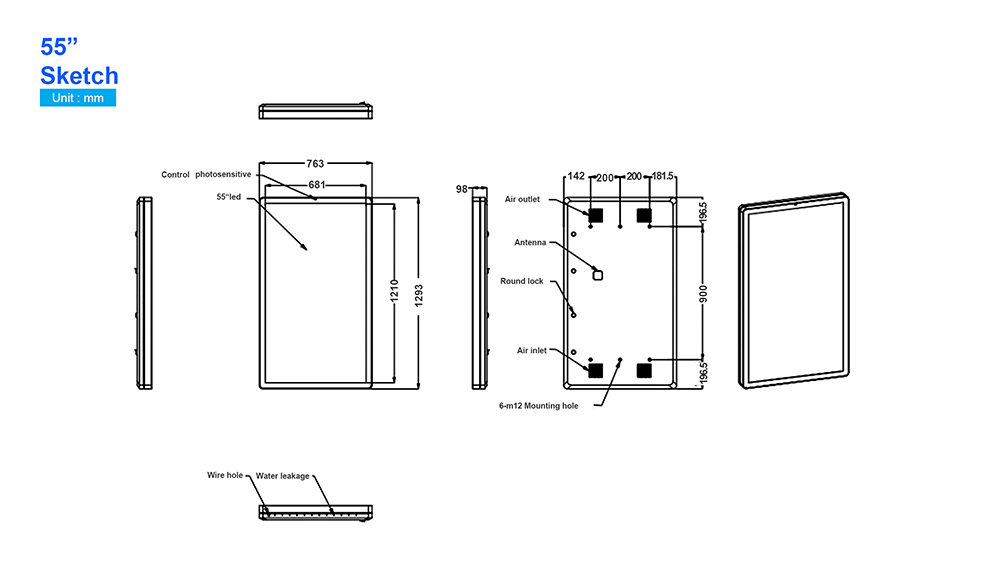

763*1293*98 |
883*1508*98 |
1028*1750*98 |
1115*1995*98 |
|
Weight(kg) |
35kg |
45kg |
60kg |
65kg |
90kg |
120kg |
160kg |
|
Service Environment |
Service Environment |
All outdoors |
|
Use of temperature |
-30℃~+80℃ |
|
Ambient humidity |
5%~98% |
|
Multimedia |
Configuration |
Memory |
Run |
System |
|
Windows |
4G |
128g |
win7/win10 |
|
Android |
2g |
8g |
Android5.0 |
|
Networking method |
RJ45,WIFI,4G(optional) |
|
Data interface |
VGA， HDMI，DVI，USB，RS232 |
